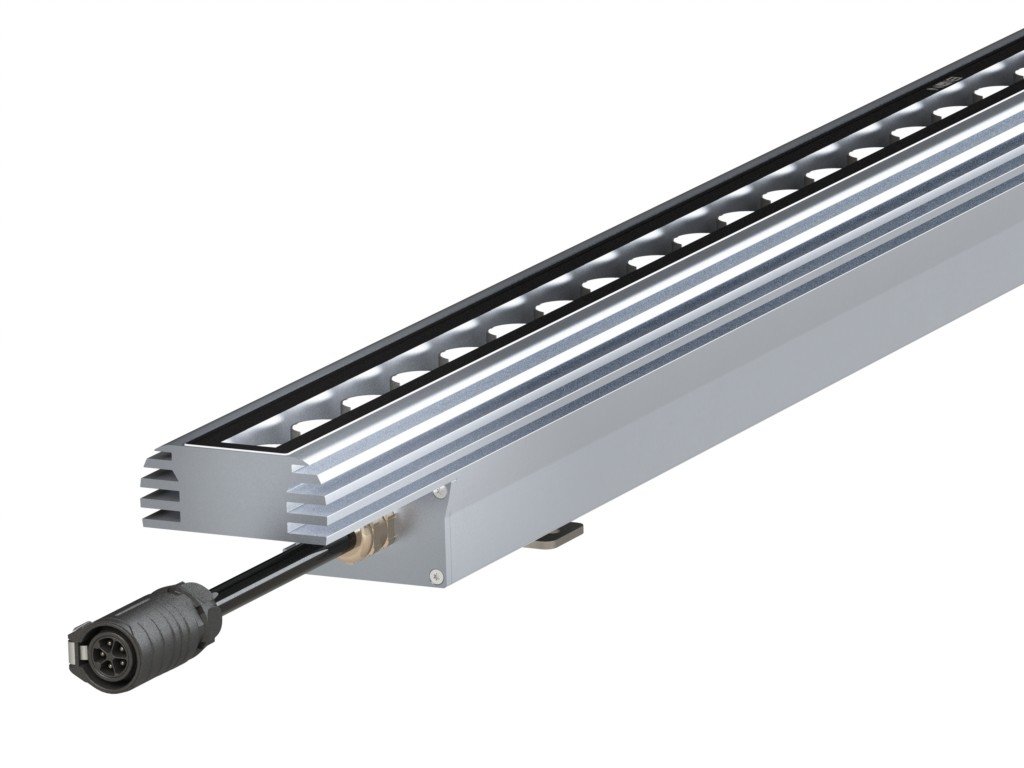

linea m eco
tunableWhite
The economic, color-temperature dynamic, linear fixture for outdoors
IP66 – Developed for the most adverse environmental conditions, the new linea m eco outdoor presents itself with an innovative plug-receptacle arrangement, enabling end-to-end connections without any cables. For dynamic ranges exceeding 3000 K to 6000 K, project specific lamping is available.

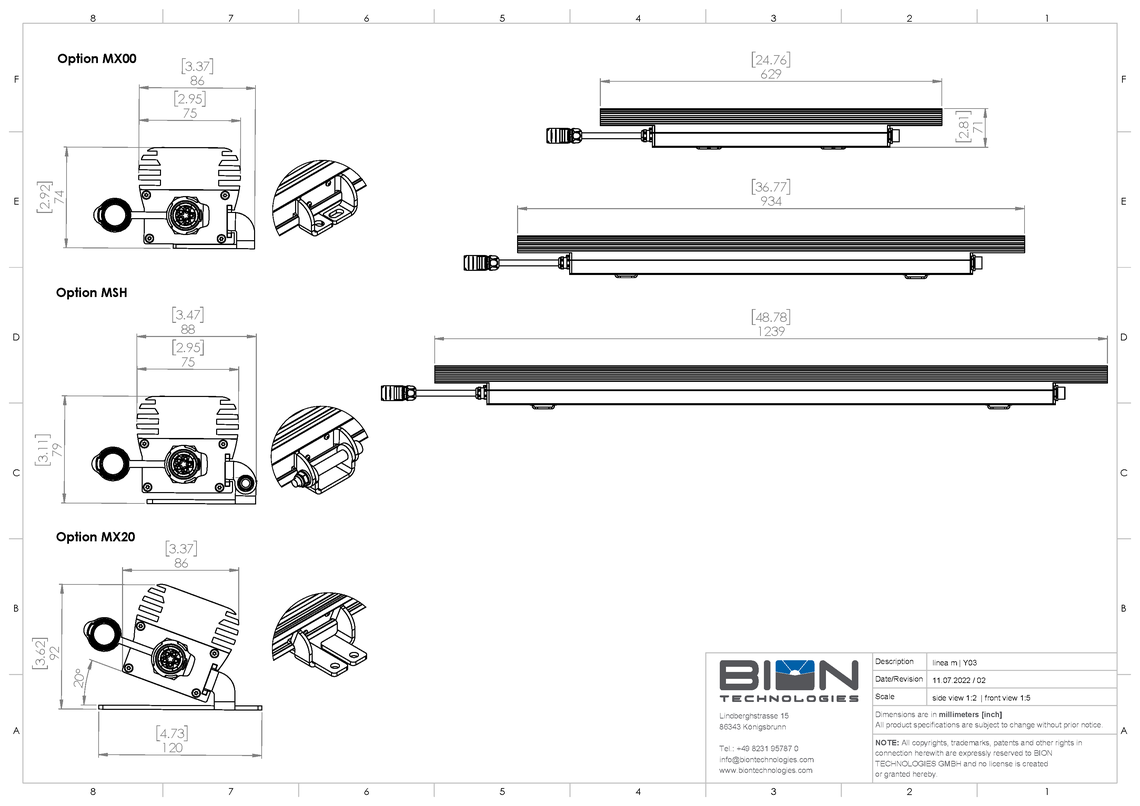

| Dimensions | 75 mm x 71 mm [W x H] | |||||||||
| Standard Unit Lengths | 629 mm, 934 mm, 1239 mm 24.77 in, 36.78 in, 48.78 in | |||||||||
| Luminaire Type |  tunableWhite | |||||||||
| Color Temperature tunableWhite | 2700 K - 6500 K | |||||||||
| Beam Angles | ||||||||||
| Lumen Output |
| |||||||||
| Light Source |
| |||||||||
| Antiglare | optional:
| |||||||||
| LED-Binning |  | |||||||||
| MacAdam Ellipses Binning | 3 | |||||||||
| Control | DMX, 0 - 10 V, DALI | |||||||||
| Input Voltage | Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC | |||||||||
| Power Consumption |
| |||||||||
| Power Factor Correction | 629 mm, 934 mm, 1239 mm (24.77 in, 36.78 in, 48.78 in):
>= 0,97 @ 110 VAC (max. Output) | |||||||||
| Protection Class | I | |||||||||
| Inrush | 629 mm (24.77 in): 934 mm, 1239 mm (36.78 in, 48.78 in): | |||||||||
| Storage Temperature | -40 °C / +80 °C | -40 °F / +176 °F | |||||||||
| Operating Temperature | -40 °C / +40 °C | -40 °F / +104 °F | |||||||||
| Start-up Temperature | -25 °C / +40 °C | -13 °F / +104 °F | |||||||||
| Lumen Maintenance [L70] | 65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F) | |||||||||
| LED-Class | Class 2 LED-Product | |||||||||
| Housing | Aluminium | |||||||||
| Housing Color(s) |   | |||||||||
| Lens | Tempered safety glass, extra white | |||||||||
| Weight |
| |||||||||
| Ingress Protection | IP66 | |||||||||
| Environment |   | |||||||||
| Impact Protection | IK07 | |||||||||
| Certification |    |
Produktdaten
Your order code:
Send request
When the background gets green, your selection is complete!
Please choose from the options below.
Please choose from the options below.
TYP - LUMINOUS COLOR
DIMMING
FIXTURE LENGTH
BEAM ANGLE
WIRING
HOUSING COLOR
POSITION LEADER CABLE
LEADERCABLE LENGTH
GLARE PROTECTION
MOUNTING OPTION
Load Table 230 V
Recommended maximum count of fixtures per circuit breaker.
| 230 V | B10 | B16 | C10 | C16 |
|---|---|---|---|---|
| 629 mm (24.77 in) | - | 12 | - | 20 |
| 934 mm (36.78 in) | - | 8 | - | 14 |
| 1239 mm (48.78 in) | - | 8 | - | 14 |
Load Table 110 V
Recommended maximum count of fixtures per circuit breaker.
| 110 V | B10 | B16 | C10 | C16 |
|---|---|---|---|---|
| 629 mm (24.77 in) | - | 12 | - | 20 |
| 934 mm (36.78 in) | - | 8 | - | 14 |
| 1239 mm (48.78 in) | - | 8 | - | 14 |
