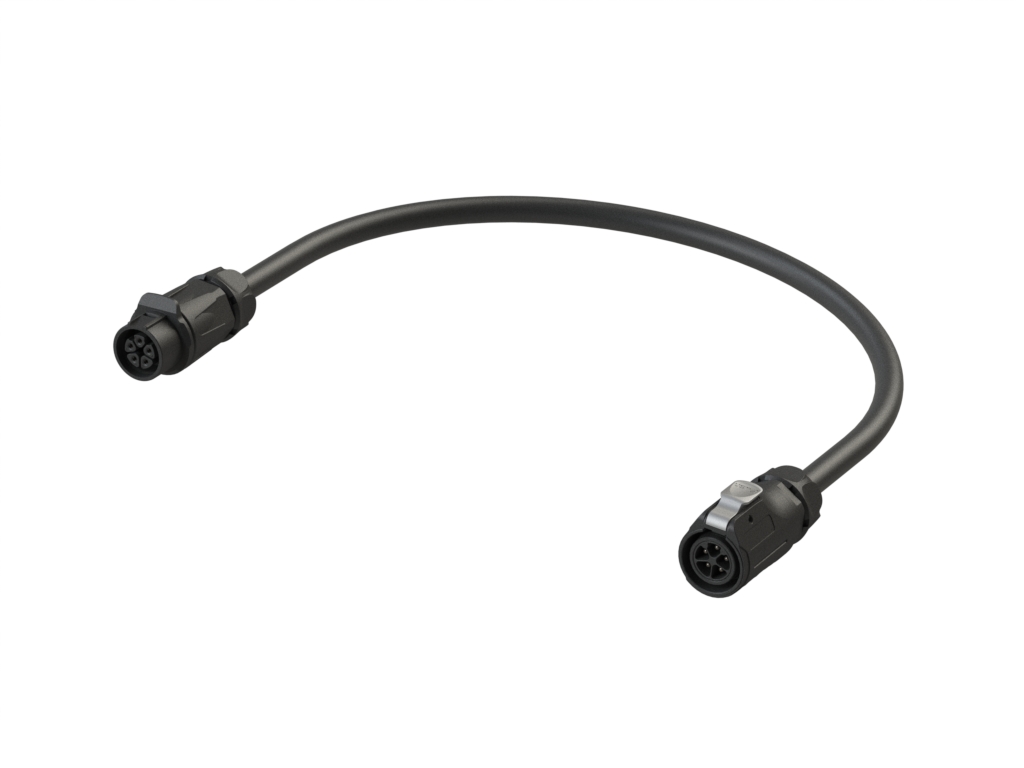

linea m connection cable

linea m connection cable

Quicklinks

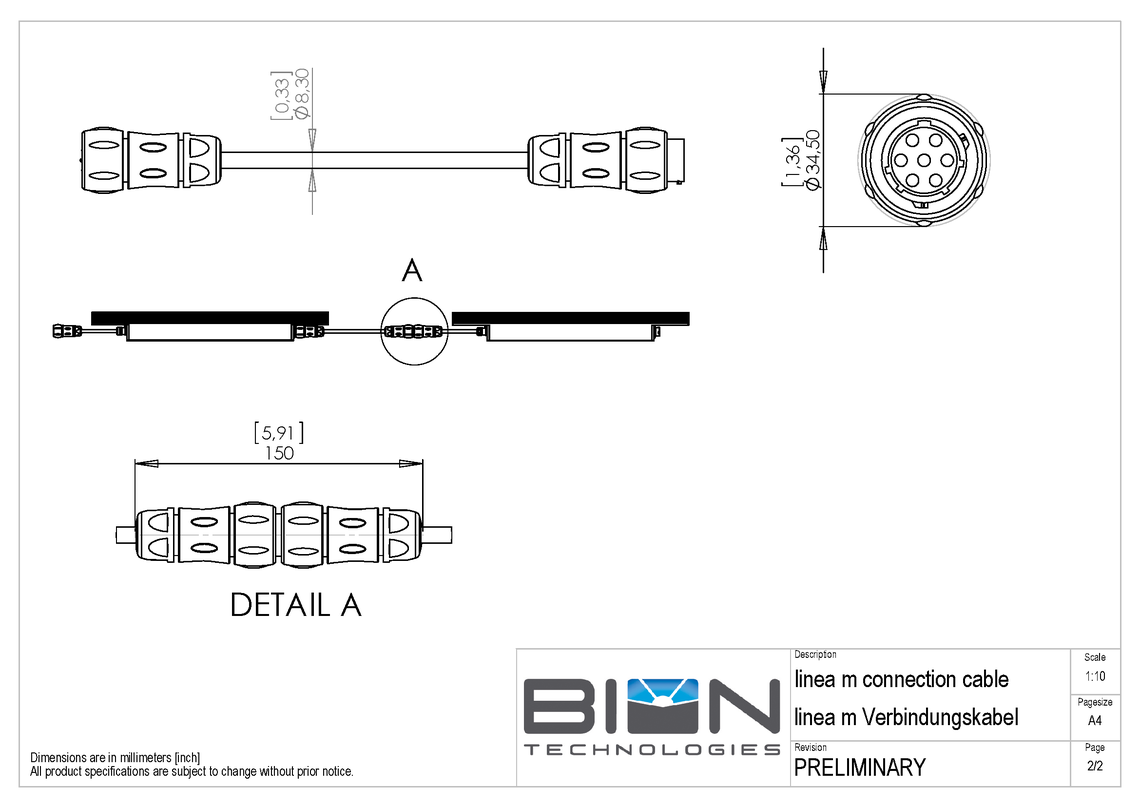

Dimensions

outer diameter cable: 8,3 mm [0.33 in]
outer diameter plug: 35 mm [1.38 in]
minimum bending radius fixed: 4 x outer diameter
minimum bending radius casually shifted : 15 x outer diameter
Standard Unit Lengths305 mm, 915 mm, 1525 mm, 3050 mm
12.01 in, 36.03 in, 60.04 in, 120.08 in
Operating Temperature-40 °C / +80 °C | -40 °F / +176 °F
Ingress ProtectionIP66
Environment
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

FIXTURE LENGTH
  1. 305 mm / 12.01 in
  2. 915 mm / 36.03 in
  3. 1525 mm / 60.04 in
  4. 3050 mm / 120.08 in
